ANSI Cast Iron Metal Seated Sluice Valve

Specifications:
1. Body:             GGG40/50
2. Disc:              GGG40/50
3. Seat:              Brass/Bronze
4. Stem:             2cr13
5. Bonnet:          GGG40/50
6. Hand wheel:  GGG40/50

Application:
1.Face to face is according to ANSI B16.10

2.Flange drilled is according to ANSI B16.1/16.5

3.Class 125: Flat Face flange

4.Class 150: Raised face flange

Working Range:

1.Potable water /drinking water

2.Water/wastewater treatment

Function:

Fully open and close and it is opened for long time usually ,then some day,we need close it to maintain pipe or check status ,this moment we need this still work and open it easily like before .Poor quality one might be dead to not working or it is weak to destroy when to open, good one will overcome these problems aboved.It is often amounted under the ground,and work with other types of valves like butterfly valve,Non-return valve and stainers.

Test:
Working pressure:     125PSI      /     150PSI
Shell pressure:                    1.5MPa
Seat pressure:                     1.1MPa

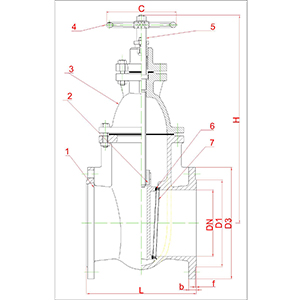

Dimensions:

We also offer big size from 2" to 48" for this valve.

If you have specified requirements or any questions,welcome to ask for us.
